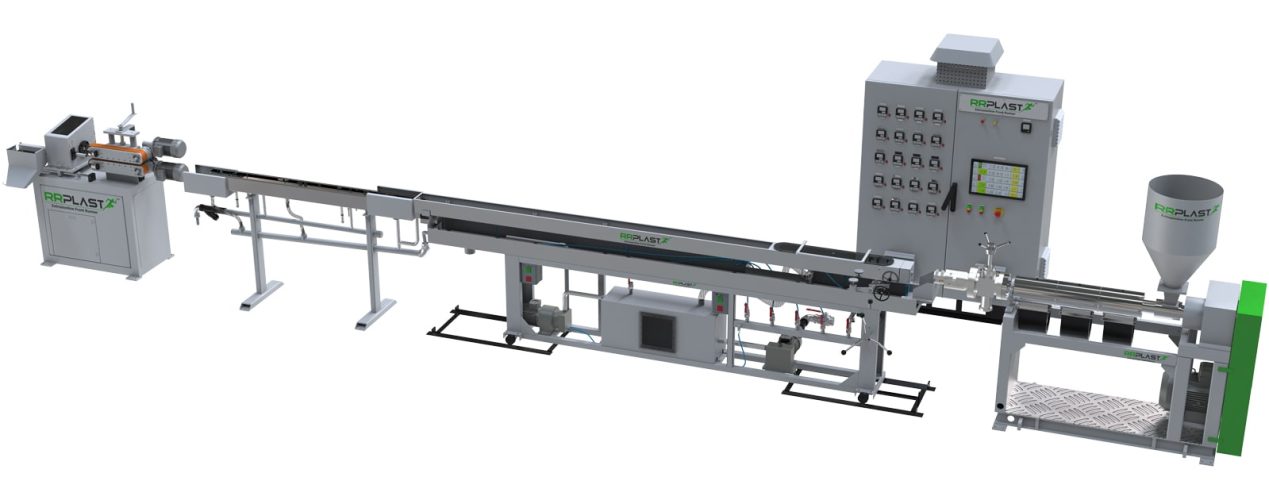

PRECISION TUBE EXTRUSION PLANT

D/F BARREL, POLO BARREL, REFILL TUBE, LOLLIPOP STICKS, DIP TUBE, INDUSTRIAL TUBE

Features

  • Material PP, HD, LD, EVA, TPE etc
  • Tube Size 2 mm – 20 mm
  • Mono Layer or Multi-Layer
  • Speed up to 70 meter min or 1000 cuts/min
  • Pipe dimension accuracy ±0.05 mm
  • Pipe cutting accuracy with a single blade ±0.5 mm
  • Precise vacuum control
    Melt pump for better control of flow
  • Servo-driven coiler for special applications
  • Servo cutter for high speed, accuracy & less waste
  • Output 30/50 kg/h
Technical Specifications
ModelO/P (cuts/min)Output (Kg/h)
RRPP-50/25/2580-100 cuts/min – D/F Pen Barrel25-30
200-250 cuts/min – Polo Barrel
RRPP-50 (single color)300-500 cuts/min – Refill15-30
800-1000 cuts/min – Lollypop stick
Technical Specifications
ModelO/P (cuts/min)Output (kg/h)
RRPP-50/25/25 (Three color)80-100 cuts/min – D/F Pen Barrel25-30
200-250 cuts/min – Polo Barrel
RRPP-50300-500 cuts/min – Refill15-30
800-1000 cuts/min – Lollypop stick

Note: The specification is subject to change without prior notice.

Applications

DIP TUBE

D/F PEN BARREL/REFILL

LOLLIPOP STICK
