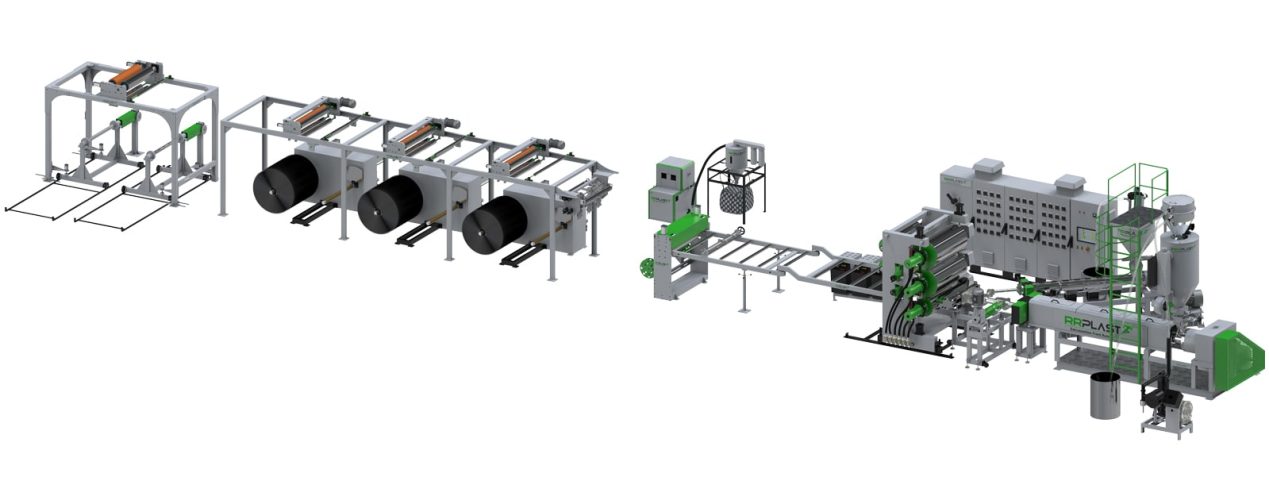

PP, PS ECO-EFFICIENT SHEET EXTRUSION LINE
"SMALL FOOTPRINT - BIG OUTPUT”
RR Plast developed Eco-efficient single screw extrusion line to save Power, Space, Less residential time.
Unique features: –
- 50% More power saving than a standard extruder
- 50% Space saving compared to standard machine
- 50% Less material residential time in the extruder
- Monolayer/Multilayer sheet extrusion possible
- Sheet Extrusion output from 300-1500 kg/h for PP, PS based on the raw material of a uniform mix with a minimum bulk density of >400 gm/L
ENERGY SAVING
EFFICIENT
ECONOMICAL
Main Technical Parameters
| Model | Unit | 65/33-1000 | 75/36-1000 | 90/36-1000 | 100/36-1200 | 120/36-1200 |
| Thickness | mm | 0.3-2 | 0.3-2 | 0.3-2 | 0.3-2 | 0.3-2 |
| Sheet Width | mm | 700-900 | 700-900 | 700-900 | 1000-1100 | 1200-1400 |
| Main Motor | kWh | 75 | 110 | 160 | 200 | 315 |
| Output (PP) | kg/h | 300-400 | 500-600 | 700-800 | 1000-1100 | 1300-1500 |
| Output (HIPS) | kg/h | 400-500 | 600-700 | 900-1000 | 1200-1300 | 1500-1700 |
| Model | Unit | 65/33-1000 | 75/36-1000 | 90/36-1000 | 100/36-1200 | 120/36-1200 |
| Thickness | mm | 0.3-2 | 0.3-2 | 0.3-2 | 0.3-2 | 0.3-2 |
| Sheet Width | mm | 700-900 | 700-900 | 700-900 | 1000-1100 | 1200-1400 |
| Main Motor | kWh | 75 | 110 | 160 | 200 | 315 |
| Output (PP) | kg/h | 300-400 | 500-600 | 700-800 | 1000-1100 | 1300-1500 |
| Output (HIPS) | kg/h | 400-500 | 600-700 | 900-1000 | 1200-1300 | 1500-1700 |
Note: The specification is subject to change without prior notice.
Applications
YOGURT CUPS
FOOD PACKAGING
