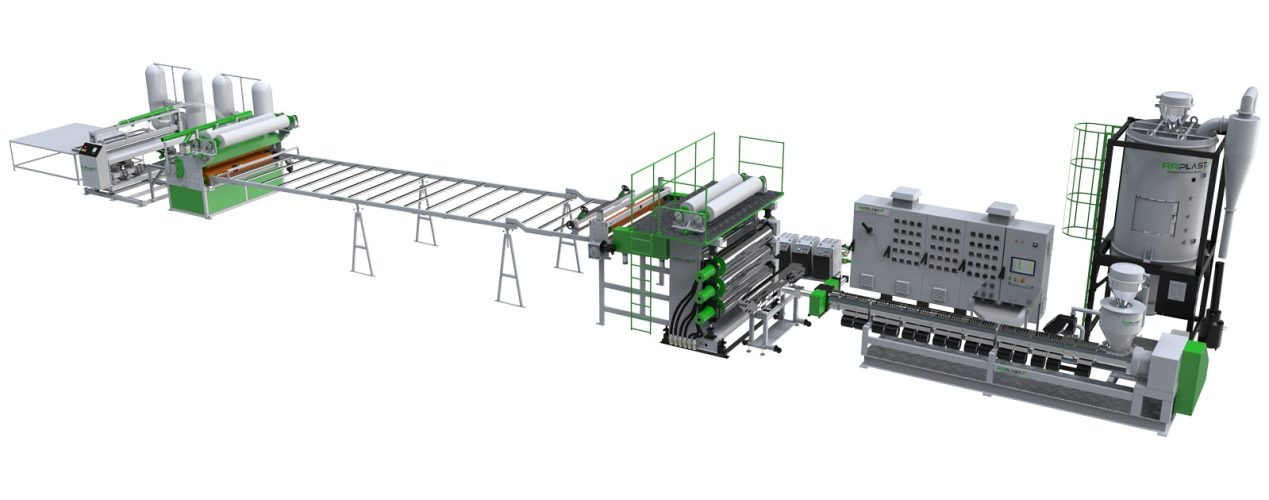

PP, PE, ABS, PVC, TPE THICK SHEET/BOARD EXTRUSION LINE
PP – PP Thick sheet is widely used in chemical industries, food industries, anti-erosion industries, and environmentally friendly equipment industries.
PE – PE thick sheet is widely used in home appliances, electronic packaging, medical, and automobile appliances.
PVC – Rigid PVC thick sheet is widely used in the chemical industry, petrol electroplating, water purifying equipment, lamp house, and advertising industries.
TPE – Car Anti-skid foot mat
ABS – ABS Thick sheet is widely used in home appliances, electronic packaging, and medical application.
Features: –
- Vented/Non vented extruder
- Cloth/Glass wool/Film lamination
- Gelatin/Saw Cutter
- Water/Oil roll temperature control unit
- PLC-based operation control
Main Technical Parameters
| Model | Unit | RRSL-150-2000 | RRSL-180-2600 | RRSL-TS90/28V-1600 |
| Material | PP, PE, ABS | PP, PE, ABS | RPVC | |
| Sheet Width | mm | 1250-1800 | 1500-2400 | 1220 |
| Sheet Thickness | mm | 3-30 | 3-30 | 3-30 |
| Extruder | 150/35 | 180/35 | TS 90/28V | |
| Output | kg/hr | 500 | 800 | 400 |
| Model | Unit | RRSL-150-2000 | RRSL-180-2600 | RRSL-TS90/28V-1600 |
| Material | PP, PE, ABS | PP, PE, ABS | RPVC | |
| Sheet Width | mm | 1250-1800 | 1500-2400 | 1220 |
| Sheet Thickness | mm | 3-30 | 3-30 | 3-30 |
| Extruder | 150/35 | 180/35 | TS 90/28V | |
| Output | kg/hr | 500 | 800 | 400 |
Note: The specification is subject to change without prior notice.
Applications
SHEET IN CUT LENGTH
CHEMICAL TANK OR LINER
