PLA, PBAT COMPOSTABLE SHEET EXTRUSION LINE
PLA, PBAT, PP, PS

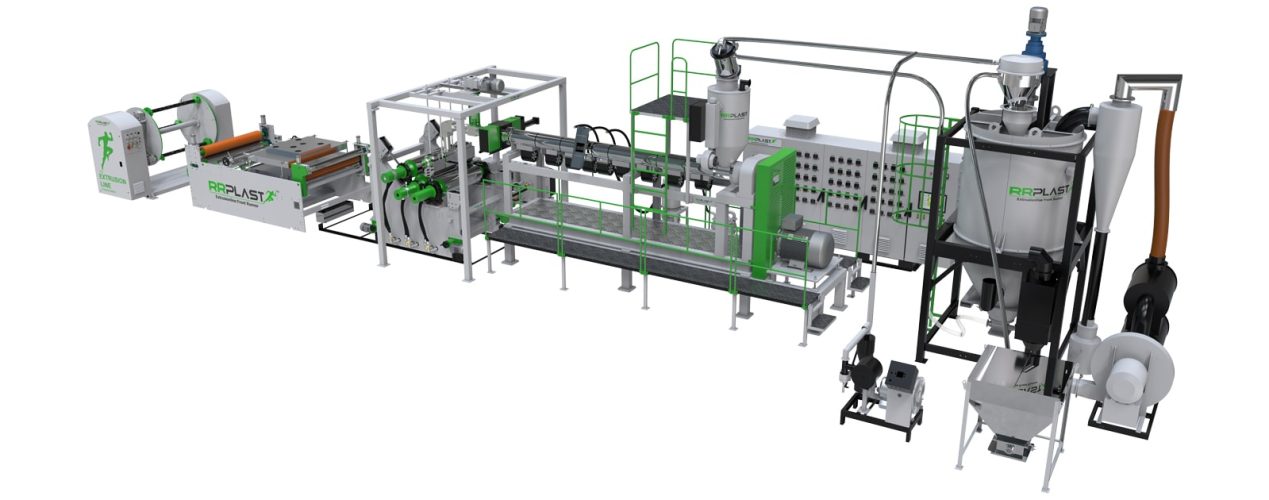

HVSSE Vented Sheet Extrusion Line
RR Plast develops high vacuum single screw extrusion (HVSSE) line for PLA/PBAT sheet. This line is equipped with a degassing system and no need for a dehumidifier unit.
PLA (Polylactic acid) is a thermoplastic monomer derived from renewable, organic sources such as corn starch or sugar cane.
PBAT – Poly(butylene adipate-co-terephthalate): It is generally marketed as a fully biodegradable alternative.
Due to single-use plastic getting banned, the demand for compostable/bio-degradable disposable material started increasing very high.
Application: Disposable cups, plates, and bowls.
HVSSE
High Vacuum Single Screw Extruder – Features
- Dryer Free PLA Processing (No Dehumidifier)
- Power saving – Most efficient extrusions
Main Technical Parameters
| Model | Unit | 90/35V | 100/35V | 120/35V |
| Sheet Thickness | mm | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 |
| Sheet Width | mm | 650-1000 | 650-1000 | 1000-1200 |
| Main Motor | kWh | 75 kW | 90 | 160 |
| Output | mm | 200 | 300 | 500 |
| Model | Unit | 90/35V | 100/35V | 120/35V |
| Sheet Thickness | mm | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 |
| Sheet Width | mm | 650-1000 | 650-1000 | 1000-1200 |
| Main Motor | kWh | 75 kW | 90 | 160 |
| Output | mm | 200 | 300 | 500 |
Note: The specification is subject to change without prior notice.
Applications
BIODEGRADABLE SHEET
BIODEGRADABLE GLASS & PLATES
