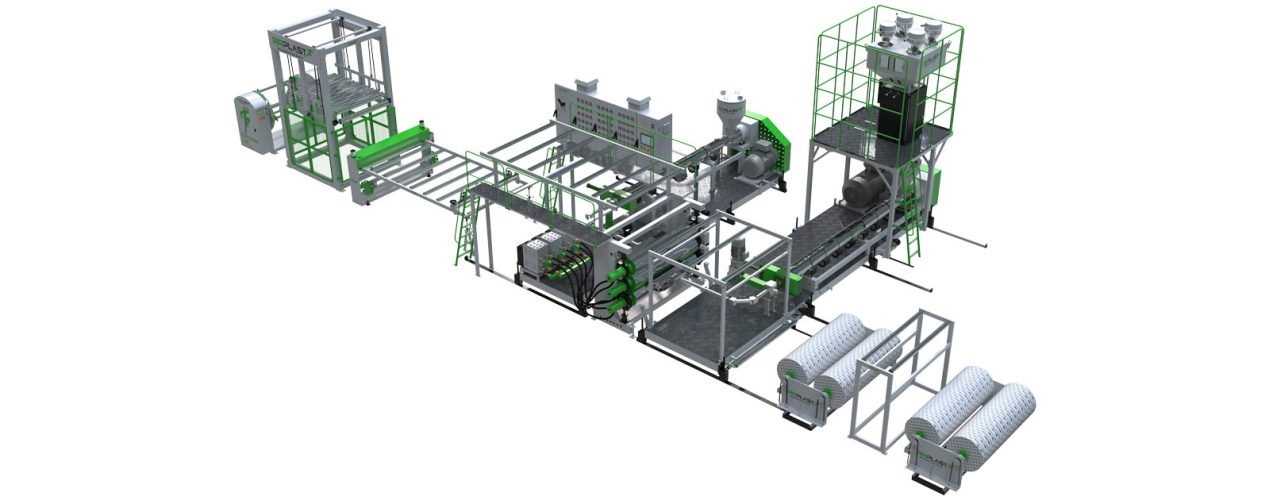

PE, TPO, S-PVC GEOMEMBRANE, WATER PROOFING SHEET EXTRUSION LINE

The line is equipped with 2 flat Die heads.

  • The mechanical resistance to elongation, tear, punching
  • High resistance to light, ozone, chemical agent, fire
  • 100% water proof

Used for different kinds of plastic material, such as PVC, TPO, PE etc. Being able to produce below sheets:-

  • Plastic roll sheet (Model:H): Without coating with inner reinforced material or outer material
  • Roll sheet with outer fiber (Model:L): Coating with fiber or non-woven fabric
  • Inner reinforced roll sheet (Model:P): Inner layer coats with polyester mesh
  • Inner reinforced roll sheet (Model:G): Inner layer coated with glass fiber.

Main Technical Parameters

WATER PROOFING SHEET LINE

MaterialUnitTPO, PVC, Polyester Scrims,
Glass Fiber & Mineral filters
Sheet Thicknessmm0.5 to 3
Sheet Widthmmup to 2200
Outputkg/hup to 1000

GEOMEMBRANE/GEOLINE SHEET LINE

MaterialUnitPolyolefin resin
Sheet Thicknessmm0.8 to 2
Sheet Width up to 2000
Sheet StructuremmSingle layer or co-extruded
Outputkg/hup to 2000

Note: The specification is subject to change without prior notice.

Applications

THE APPLICATION RANGE IS EXTREMELY WIDE: FOUNDATIONS, TUNNELS, SUBWAYS, SWIMMING POOLS
