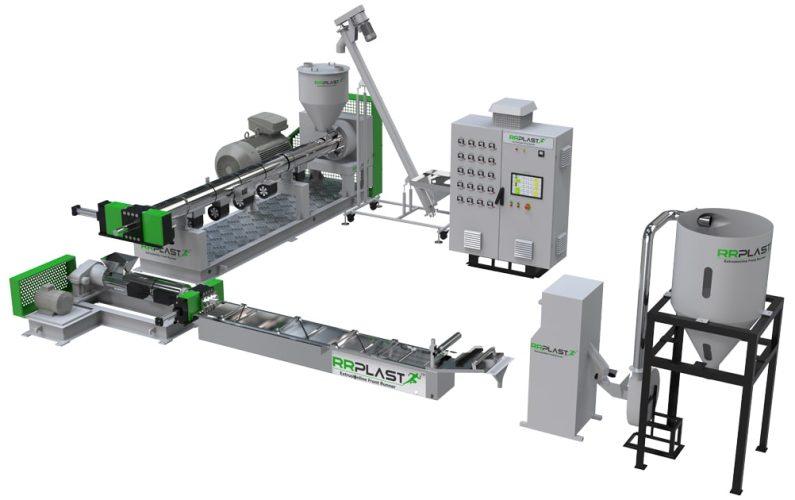

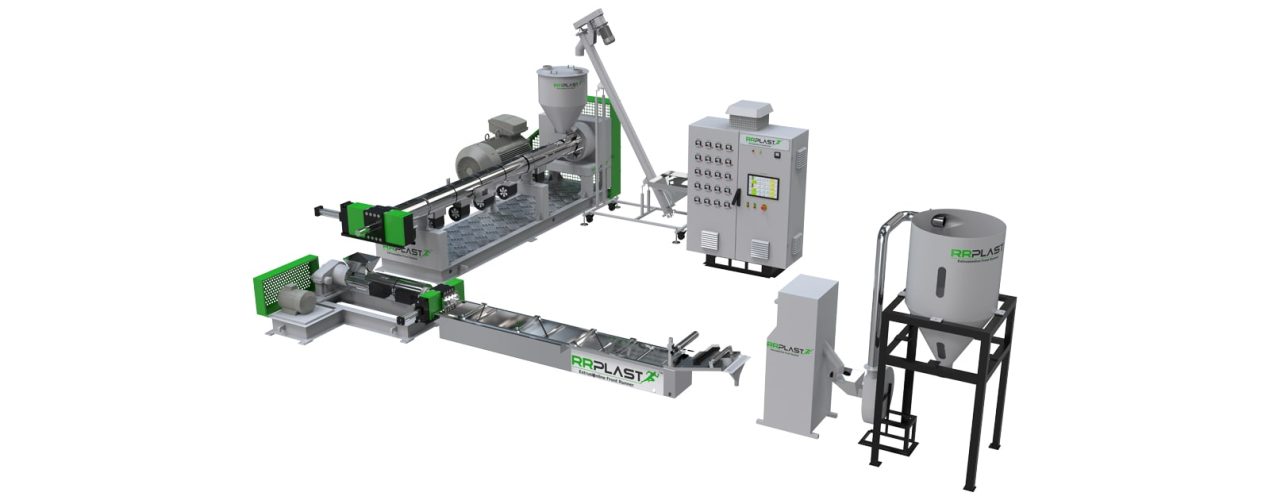

TWO STAGE VENTED RECYCLING PLANT
MOTHER BABY EXTRUDER WITH PELLETIZING OR DIEFACE CUTTER SYSTEM
Applications
- Material: All kinds of plastic waste.
- Online Force Feeding Film Trim, Tape Trim without cutting agglome.
- For the plastic waste of higher moister, heavy printing, heavy contamination.
- For low bulk density material less than < 0.5 gm/cm3.
Features
- Both the Extruder has Screen Changer so dual filtration.
- Main Extruder can be provided with Force Feeder.
- Main Extruder is vented type.
- Both Extruder are Synchronised speed through AC drive.
- Filter Choking Alarm & Triply Facility.
SPECIALLY DESIGN PLANT FOR
- Low Bulk Density Material.
- Foam Material.
- Hygroscopic Material.
- Multilayer Film Waste
- Highly Printed Film Waste.
| TECHNICAL SPECIFICATION (Mother-Baby Type) | |||
| Model | Main Motor (kw) | O/P (Kg/hr) (with Agglo) | OP (Kg/hr) without Agglo For low Density material <0.5gm/cm |
| RRRP-90/35v-90/10-2S | 45+7.5 | 200-220 | 110-150 |
| RRRP-100/35v-100/10-2S | 55+7.5 | 230-250 | 150-200 |
| RRRP-120/35v-120/10-2S | 75+11 | 300-400 | 200-250 |
| Technical Specifications | |||
| Model | Main Motor (kw) | O/P (kg/hr) (with Agglo) | OP (kg/hr) with Agglo for low density material <0.5gm/cm |
| RRRP-90/35v-90/10-2S | 45 + 7.5 | 200-220 | 110-150 |
| RRRP-100/35v-100/10-2S | 55 + 7.5 | 230-250 | 150-200 |
| RRRP-120/35v-120/10-2S | 75 + 7.5 | 300-400 | 200-250 |
Note: The specification is subject to change without prior notice.
