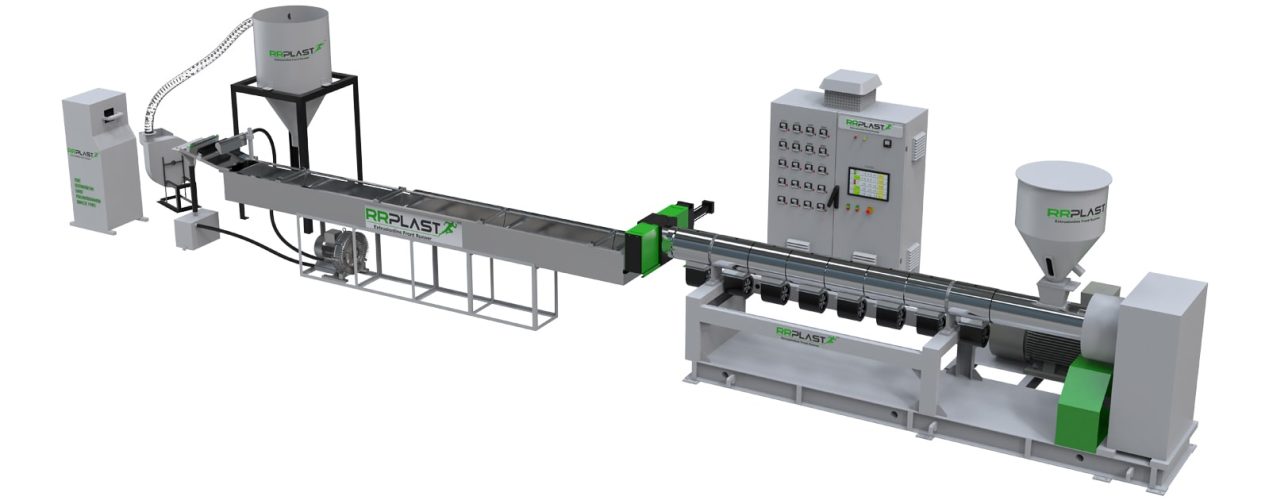

ROTO-PE COLORING GRANULATION PLANT

WITH STRAND PELLETIZING TYPE

Applications

  • PE GRANULES
  • BLACK PIGMENT/MASTERBATCH
  • PE COMPOUND GRANULES
  • PE COMPOUND FOR ROTO MOULDING

Features

  • Better Dispersion of Carbon Black / Masterbatch
  • Barrier Screw design with the mixing zone
  • Autoloading/Auto MB Dozing/Auto Granule collection.
  • One man operation
  • Consistent granules size improves pulverizing efficiency.
Technical Specifications
ModelO/P (kg/hr)Screw Dia (mm)L/D RatioMain Motor (KW)Rotory PelletizerHeating Load (KW)
Roto WidthMotor (KW)
RRRP-90/35V160-2209035:14561.536
RRRP-100/35V200-25010035:15562.2542
RRRP-120/35V300-40012035:19063.7549
RRRP-150/35V400-50015035:111065.555
Technical Specifications
ModelRRRP-90/35VRRRP-100/35VRRRP-120/35VRRRP-150/35V
O/P (kg/hr)160-220200-250300-400400-500
Screw Dia (mm)90100120150
L/D Ratio35:135:135:135:1
Main Motor (KW)455590110
Rotory PelletizerRoto Width6666
Motor (KW)1.52.253.755.5
Heating Load (KW)36424955

Note: The specification is subject to change without prior notice.

Applications

GRANULES

ROTO TANK

ROAD BARRIER
