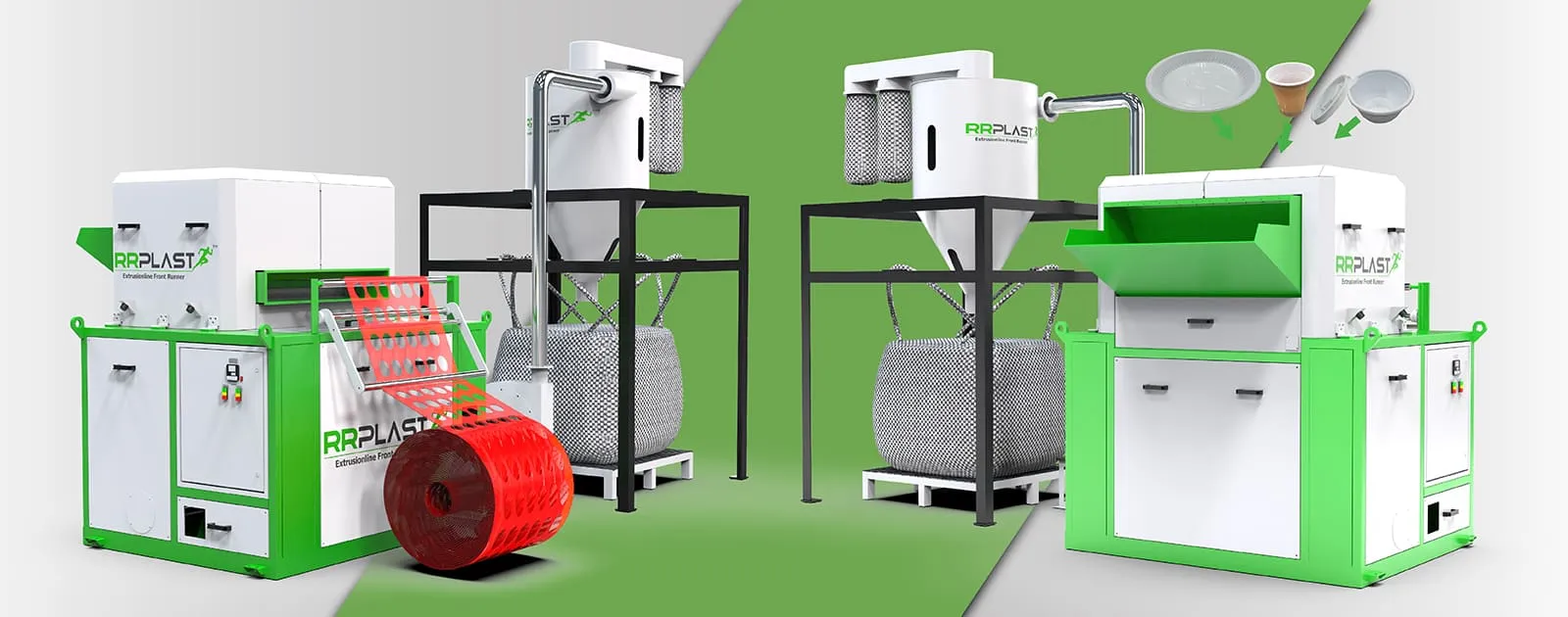

ROLL FEED CRUSHER
WITH BLOWER & SILO
Sheet Skeleton Grinder Features:-
- Suitable to crush PP, PET, PS, ABS, and TPE material sheets
- The soundproof design ensures a low noise level
- Cutting chamber design ensures a low noise level
- Control nip feeding ensures continuous operation & consistent output
- High-quality material D2 is used for blades
- Inbuilt control panel with drive & relay provided
- Dust cyclone separators can effectively remove the air from regrind and facilitate the material collecting
- The cutting chamber made of high rigidity material, after processing by CNC machine, has features like high intensity, super wearability, no contamination, long service life, and easy maintenance and repair
| Main Technical Parameters | |||
| Model (Skeleton Sheet) | RRSG-750/SK | RRSG-1000/SK | RRSG-1200/SK |
| Application | Sheet Thickness 0.2-2 mm Thermoforming Skeleton / Sheet | ||
| Output (kg) PP/PET (for HIPS 25% extra output) | 200-300 | 400-500 | 550-700 |
| Motor (kW) | 18.5 | 30 | 37.5 |
| Blade Width (mm/inch) | 750 (30”) | 1000 (40”) | 1200 (48”) |
| Rotating Blades | 3 + 3 | 3 + 3 | 3 + 3 |
| Fixed Blades | 2 + 2 | 2 + 2 | 2 + 2 |
| Screen Size (mm) | 12 | 12 | 12 |
| Blower Motor (kW) | 2.25 | 3.75 | 3.75 |
| Silo (ltr) | 500 | 500 | 500 |
| Main Technical Parameters | |||
| Model (Skeleton Sheet) | RRSG-750/SK | RRSG-1000/SK | RRSG-1200/SK |
| Application | Sheet Thickness 0.2-2 mm Thermoforming Skeleton / Sheet | ||
| Output (kg) PP/PET (for HIPS 25% extra output) | 200-300 | 400-500 | 550-700 |
| Motor (kW) | 18.5 | 30 | 37.5 |
| Blade Width (mm/inch) | 750 (30”) | 1000 (40”) | 1200 (48”) |
| Rotating Blades | 3 + 3 | 3 + 3 | 3 + 3 |
| Fixed Blades | 2 + 2 | 2 + 2 | 2 + 2 |
| Screen Size (mm) | 12 | 12 | 12 |
| Blower Motor (kW) | 2.25 | 3.75 | 3.75 |
| Silo (ltr) | 500 | 500 | 500 |
Note: The specification is subject to change without prior notice.
